ABOUT THE DEVELOPMENT BOARD
Power over Ethernet (PoE) connectors
?
?
P30 is the input connector of the PoE module, providing access to the PoE
signals coming from the ConnectCore 9C/Wi-9C module through P20.
P31 provides the output voltage and ground signals from the PoE module. When
you use PoE, this output voltage powers the development board; you do not
need the main power supply.

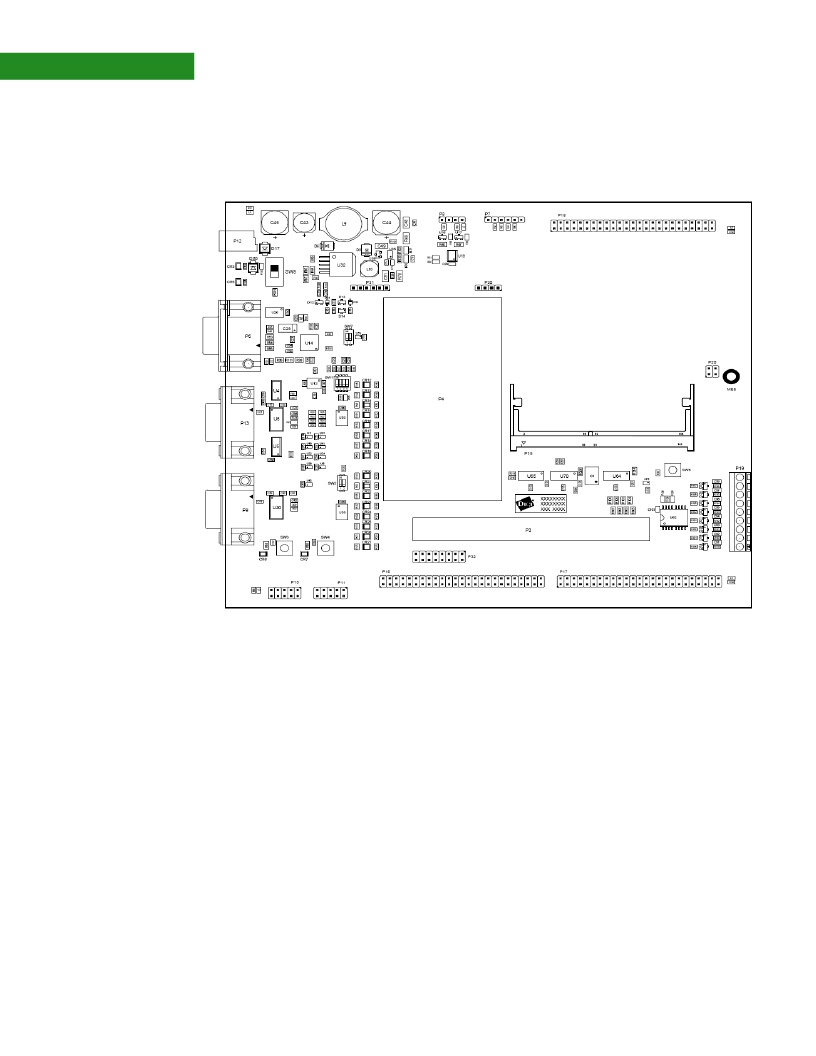

802.3afPoE
connector, P20
Manufacturer part numbers:
AMP INCORPORATED 5-146256-2
AMP INCORPORATED 5-146257-2
SAMTEC TSW-102-07-L-D
P20 pins are allocated as shown:
Pin
1
2
3
4
Signal
POE_TX_CT
POE_RJ45_7/8
POE_RX_CT
POE_RJ45_4/5
Actual signal name
POE_RJ45_4/5
POE_RX_CT
POE_RJ45_7/8
POE_TX_CT
Description
Ethernet connector pins 4 and 5
Ethernet transformer receive CT
Ethernet connector pins 7 and 8
Ethernet transformer transmit CT
P30 connector
Manufacturer part number: Samtec SLW-104-01-G-S
The P30 input connector is a 1x4 pin socket with these characteristics: SLW, THT,
RM2.54 (h=4.57mm).P30 pins are allocated as shown:
Pin
1
2
3
4
Signal
POE_TX_CT
POE_RX_CT
POE_RJ45_4/5
POE_RJ45_7/8
P31 connector
Manufacturer part number: Samtec SLW-106-01-G-S
The P31 connector is a 1x6 pin socket with these characteristics: SLW, THT, RM2.54
(h=4.57mm). P31 pins are allocated as shown:
www.digiembedded.com
Pin
1
3
5
Signal
+12V_POE
GND
POE_GND
Pin
2
4
6
Signal
+12V_POE
GND
POE_GND
51
